The ultimate in audio playback and creation solution

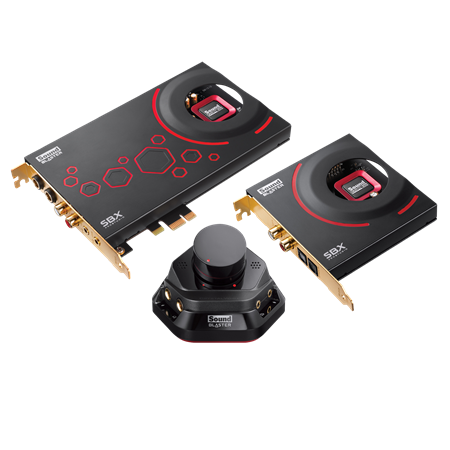

The Sound Blaster ZxR is the flagship of the ultra high-performance Z-Series of Sound Blaster® PCI-Express sound cards, elevating the standards of technology and performance for the future of gaming and entertainment on the PC. Designed to deliver the ultimate audio playback and creation solution for the PC, Sound Blaster ZxR personifies the ultimate gaming and entertainment performance for a sound card.
A signal to noise ratio or SNR of 124dB means your audio will be more than 99.99% pristine, which is over 89.1 times better than motherboard audio.
In gaming, if you're not communicating, you're not winning. Experience crystal clear communication with your teammates with the CrystalVoice™ suite of technologies that removes echoes, ambient noises and picks up your voice from within a zone (Voice Focus). It also maintains your voice level even if you are near or further away from the microphone.
Understand how CrystalVoice™ technologies work.
Add studio quality audio sound tracks or voice tracks to your video clips or home videos created with hardware that uses only audiophile-grade components such as 123dB analog-to-digital converters (ADCs) with RCA Aux-in and optical inputs for outstanding recording quality. With the 600 ohm headphone ampflier, you can do studio-grade monitoring as well.
The DBpro is another reason why Sound Blaster ZxR delivers only the best audio playback and creation. It offers optical output for outstanding audio playback, plus professional-grade ADCs with RCA Aux-in and optical inputs for studio-grade recording quality.
Take control in style and ease with the ACM that incorporates a built-in microphone array and mic/headphone I/O connections. The knob on the ACM lets you conveniently adjust the headphone levels.
We designed the quad-core Sound Core3D™ audio processor to offload SBX Pro Studio and CrystalVoice effects processing from your primary CPU, improving your overall PC performance, resulting in drastically superior audio and voice quality.
Connect to your home theatre system through a single digital cable and enjoy cinematic DVD movies by transforming any stereo or multi-channel streams into high fidelity immersive surround sound.
With the Sound Blaster Z-series Control Panel, just toggle between your headphone and speaker system with a flip of a switch.
* Please check with your local representatives or offices for product availability. Pricing, product specifications and availability are subject to change without notice. Package contents may vary according to the different regions.
| Feature |
Description |
|
Digital-to-Analog Convertor
(DAC) - Main board
|
- TI Burr-Brown PCM1794 (127dB DAC, 24bit / 192kHz) for Front L / R
- TI Burr-Brown PCM1798 (123dB DAC, 24bit / 192kHz) for Rear / C / Sub
|
Analog-to-Digital Convertor
(ADC) - DBPro board |
- TI Burr-Brown PCM4220 (Dynamic Range 123dB)
|
| Headphone Amplifier Chipset |
- Texas Instrument 6120A2 (120dB DAC, 80mW into 600 ohm)
|
| Maximum DAC Resolution |
- Front Channel Out : 24-bit, 192kHz
- Headphone (33 ohms): 24-bit, 96kHz
- Headphone (300 ohms): 24-bit, 96kHz
- Headphone (600 ohms): 24-bit, 96kHz
|
| SNR (20kHz Low-pass filter, A-Wgt), @ 24-bit, 96kHz |
- Front Channel Out : ~ 124dB
- Headphone (33 ohms): ~ 119dB
- Headphone (300 ohms): ~ 119dB
- Headphone (600 ohms): ~ 119dB
|
| Frequency Response @ 96kHz |
- Front Channel Out : 10Hz to 45kHz
- Rear Channel Out : 10Hz to 45kHz
- Center Out : 10Hz to 45kHz
- Headphone (33/300/600 ohms): 10Hz to 45kHz
|
| Frequency Response @ 192kHz(Stereo only) |
- Front Channel Out : 10Hz to 88kHz
|
| |
|
| Speaker Support |
Description |
| Supported Output |
Stereo/2.1 Speakers |
| |
5.1 Speakers |
| |
Headphones |
| |
|
| Connectivity |
Description |
| Main Card |
| Headphone Out |
1 x Amplified 1/4" Stereo Jack |
| Speaker Out |
2x RCA Out (L / R) |
| |
2x 3.5mm Out ( Rear, C/Sub) |
| Microphone In |
1/4" Stereo Jack |
| |
|
| DBPro Card |
| Optical Out |
TOSLINK |
| Optical In |
TOSLINK |
| Line In |
2x RCA In |
| |
|
| Audio Control Module |
| Microphone In |
Built-In Beamforming Microphone |
| |
1x 3.5mm In |
| |
1x 1/4" In |
| Headphone Out |
1x 3.5mm Out |
| |
1x 1/4" Out |
| |
|
|
Minimum System RequirementsIntel® Core™ 2 Duo or AMD® equivalent processor, 2.2GHz or faster recommended.
Intel®, AMD® or 100% compatible motherboard
Microsoft® Windows® 8 (32/64-bit), Windows® 7 (32/64-bit)
1 GB RAM
>600 MB of free hard disk space
Available PCI Express® (x1, x4 or x16) slot
Available I/O slot opening on casing
Available CD-ROM or DVD-ROM drive
* Please check with your local representatives or offices for product availability. Pricing, product specifications and availability are subject to change without notice. Package contents may vary according to the different regions.
- Sound Blaster ZxR sound card (main card)
- Sound Blaster ZxR sound card (daughter board)
- Audio Control Module (ACM)
- Quick Start leaflet
- Installation CD containing:
- Drivers for Windows®
- Creative software suite
Software
- Sound Blaster Z-Series Control Panel
- SBX Pro Studio™ effects
- SBX Surround™
- SBX Crystalizer™
- SBX Bass™
- SBX Dialog Plus™
- SBX Smart Volume™
- CrystalVoice™ effects
- CrystalVoice™ Noise Reduction
- CrystalVoice™ Smart Volume
- CrystalVoice™ Acoustic Echo Cancellation
- CrystalVoice™ Focus
- CrystalVoice™ FX
- Scout Mode™
- Speakers / Headphone Calibration
- Cinematic
- Mixer
- Equalizer
- Advanced Features
- EAX Advanced HD
- OpenAL
- Creative Alchemy
- Creative Diagnostics
- Online Registration Client
